LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

OMC Industry Co.Limited
Contact Now

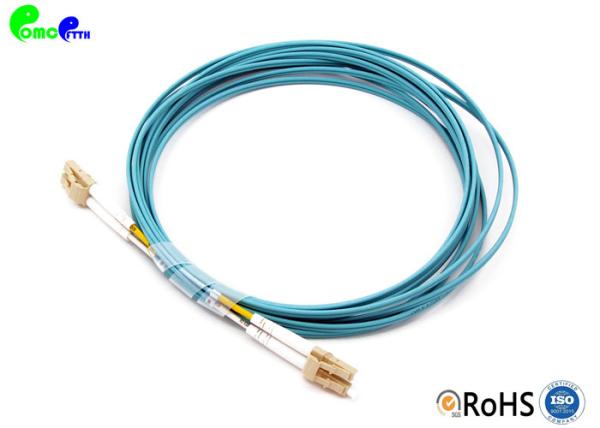

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

  • 1
  • 2
  • 3

Brand Name : OMC

Model Number : FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

Certification : ROHS and ISO

Place of Origin : China

MOQ : 10pc

Price : negotiation

Supply Ability : 50000 per day

Packaging Details : PE Bag + OEM sticker+paper Carton

Products : LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

Insertion Loss(max) : ≤0.25dB

Return Loss(min) : ≥35 dB

Tensile Strength : >70N

Durability : <0.20 dB typical change, 1000 matings

3D geometric : Yes, once requested

Polarity : A(tx)-B(rx)

OEM package : Yes, once requested

Contact Now

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.


This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.

Products info

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Simplex/Duplex Fiber Mode OM3 50/125μm BIF
Wavelength 850/1300nm 10G Ethernet Distance 300m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB
Fiber Grade G651 Minimum Bend Radius 7.5mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Cable Jacket LSZH Cable Diameter 2.0x4.1mm
Polarity A(Tx) to B(Rx) Operating Temperature -20~70°C

End-face Quality (MM)

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m MM PC

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None

IEC 61300-3

-35:2015

B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Physical Information

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0

CUSTOM option

OMC provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Applications


Telecommunications, Cable TV
LAN, WAN, MAN
Measurement
Sensor technologies
Medical instrumentation and measurement techniques
Industrial applications

Technical performance

YOFC bend insensitive fiber

7.5mm minimum bend radius

Insertion loss and return loss testing

End-face inspection

3D interferometer test

Bend Insensitive Fiber Optic Cable Structure

A unique refractive trench with low refractive index glass layer in BIF, which reduces in light dispersion upon twisting and bending, ensuring network transmission stably and fast.

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

High Quality Fiber Optic Cable Guarantee

Comprehensive performance testing makes sure the cable work more secure and data transmission more reliable and stable in your network.

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3mLC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m


Certification:

Our products are confirmed by these certifications

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m


LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m

LC FIber optic patch cord LC - LC OM3 50 / 125 10G Duplex 2.0x4.1mm LSZH Aqua 3m
